KAGO Plans · Brick build

Duplex

A double-storey duplex: ground floor with an open living and kitchen, a guest toilet and a staircase; first floor with two bedrooms, a full bathroom and a landing.

R2,495 complete plan pack
Get this plan See all plans
Floor area
72 m²
Footprint
6000 x 6000, double storey
Build type
Brick build
Materials from
R196,056

The drawings

A plan you can hand to a builder.

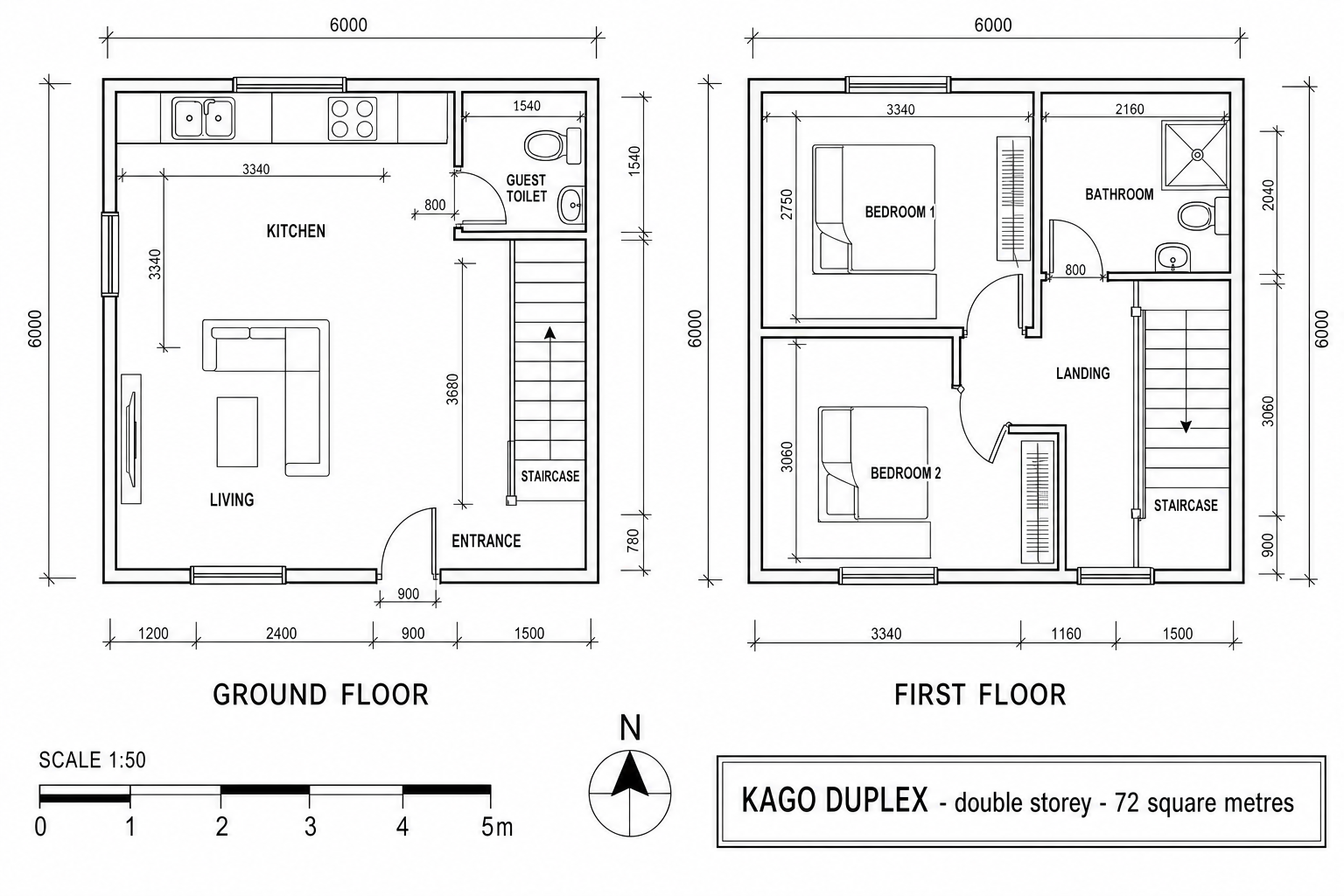

Duplex floor plan with dimensions
Dimensioned floor plan · set out in millimetres

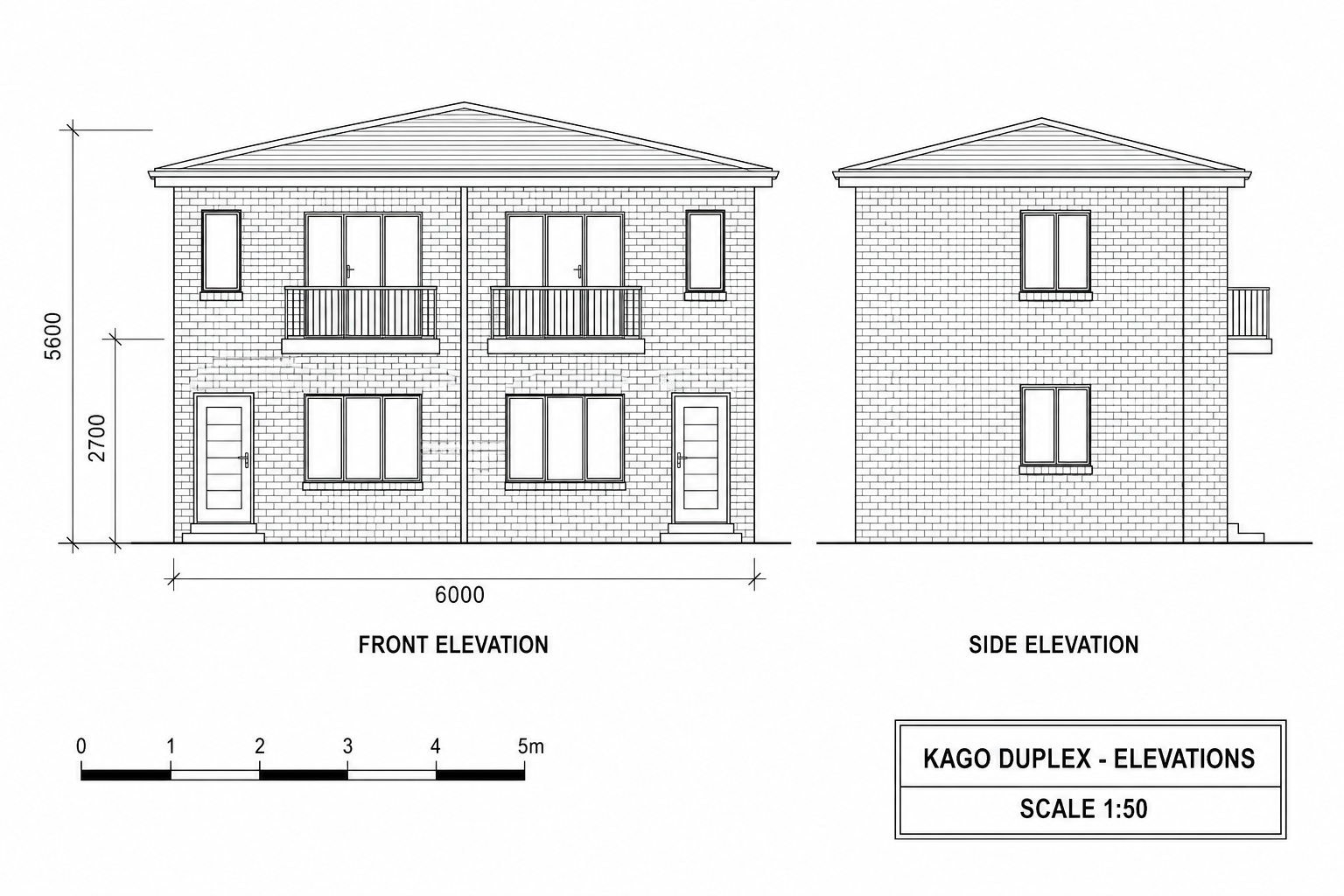

Duplex elevations
Front and side elevations · wall and roof lines

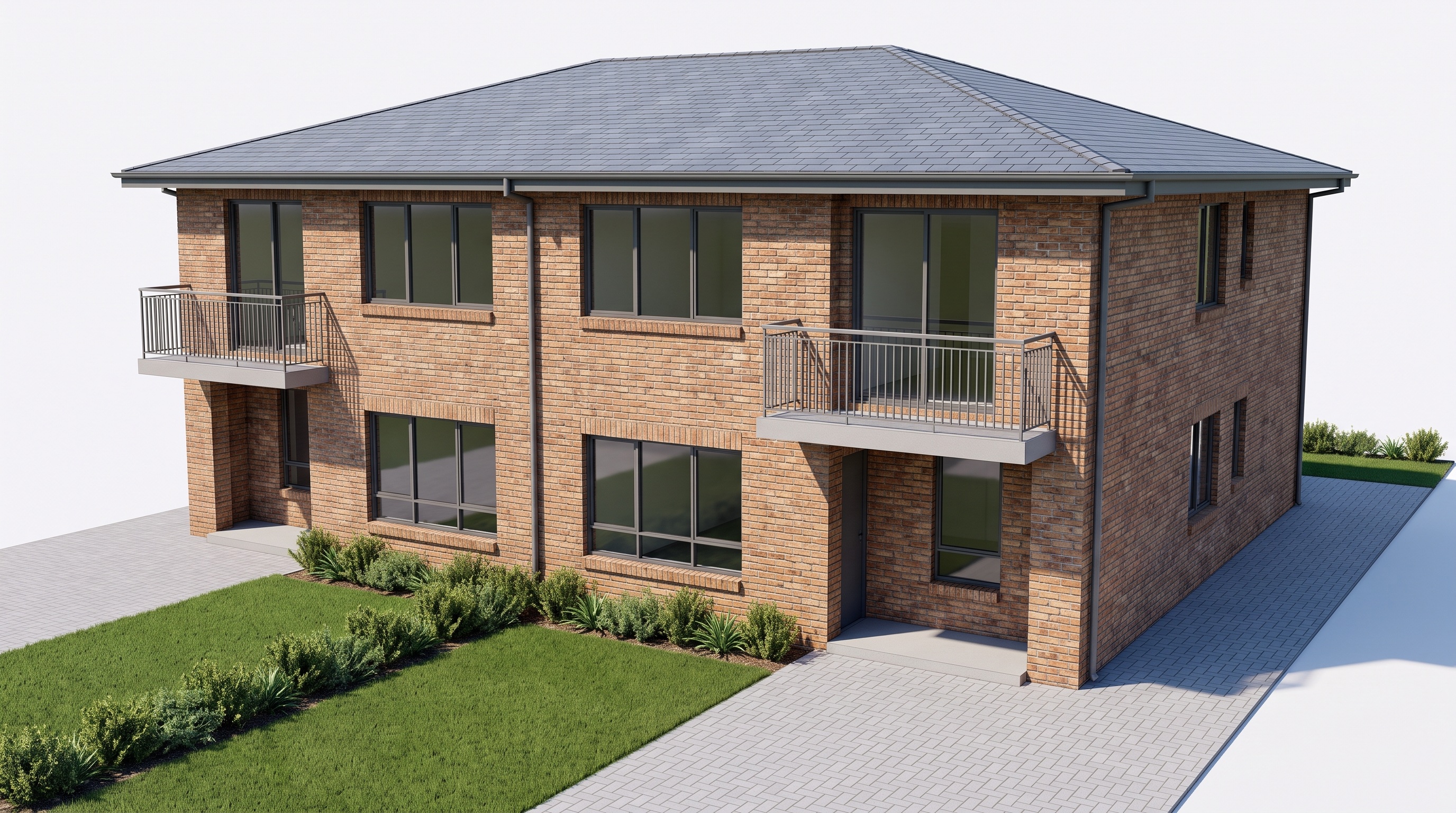

Indicative 3D render of the finished duplex Indicative render · final finishes may vary

What you receive

Everything you need to build and rent it out.

Get this plan

Duplex plan pack

R2,495

Send your details and a KAGO agent will send your payment and download link. Plans are delivered as print-ready PDFs.
